The FlowDirector series product represents a new tool to help the IT administrator to operate, monitor and debug their networks effectively. FlowDirector allows the IT administrator to orchestrate network traffic through map, tap, tag, replicate, load balance and filter their traffic across any 1G/10G SFP ingress and egress port. It enables a seamless integration between the network and the network/security analysis and monitoring tools.
reduces problem resolution times in case of error recovery thru prompt access to all measurement points
increased tool efficiency and performance reduces monitoring equipment’s costs
packet aggregation, regeneration, filtering, slicing, load-balancing, media and data rate conversion in one device
enables monitoring of 10G connections with 1G network analysis tools and visa versa
very cost effectiveness
Flexible traffic management modes
With the comprehensive easy-to-use web based GUI the IT administrator can connect their high-speed network to different network monitoring and forensic devices. FlowDirector gives flexibilities to deploy extra monitoring devices on the fly without the needs for SPAN ports. Many different traffic modes like packet aggregation, regeneration, load-balancing and media and data rate conversion eventually with filtering is supported. For all functioning modes, FlowDirector provides throughput at line rate even for the smallest frame size. This enables an efficient usage of network analysis and monitoring devices.

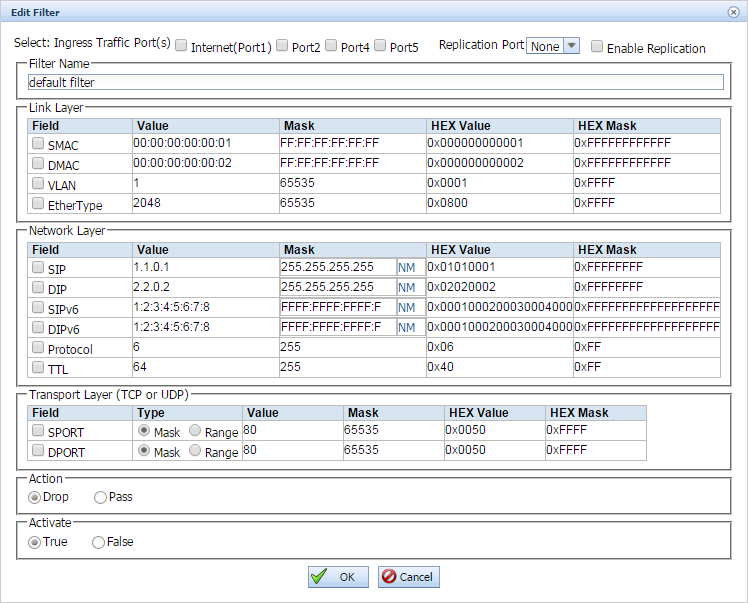

With the ingress and/or egress packet filtering functionality the IT administrator can define filter definitions on OSI layer 2-4 (e.g. MAC address, VLAN, IP address and/or UDP/TCP port). This allows selective packet forwarding to varied tools like Intrusion Detection Systems or network analysis equipment.

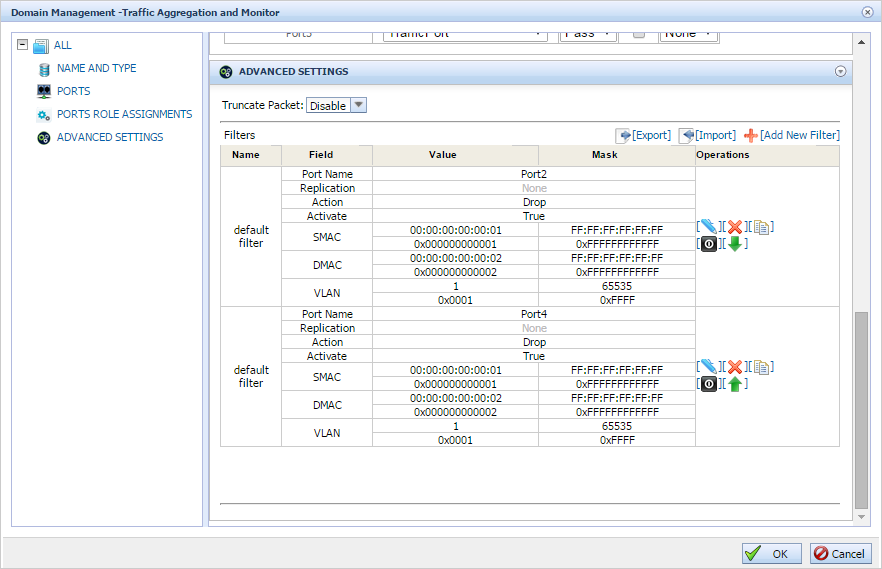

This feature enables the IT administrator to slice the packets to increase the efficient use of tools by removing unwanted information to increase recording times or to comply with regulatory compliance.
10G network analysis with Wireshark
A typical use case of the FlowDirector is 10G network analysis with existing 1G tools like Wireshark. With the embedded packet filter feature the forwarded packets can be narrowed down intelligently. In case of 1G network analysis tools with multiple ingress ports the load can be shared smart by means of different load balancing criteria’s over multiple capture ports.
Scalable due to cascading
In case the numbers of ports of one FlowDirector switch are not sufficient, multiple switches can be cascaded. With this integrated cluster functionality the number of ports can be adapted flexible to your requirements. Similar as with FlowMagic the FlowDirector is powered by InfiniOS with remote management through the intuitive web based GUI and/or command line interface. This enables integration in a higher-ranking network management solution.

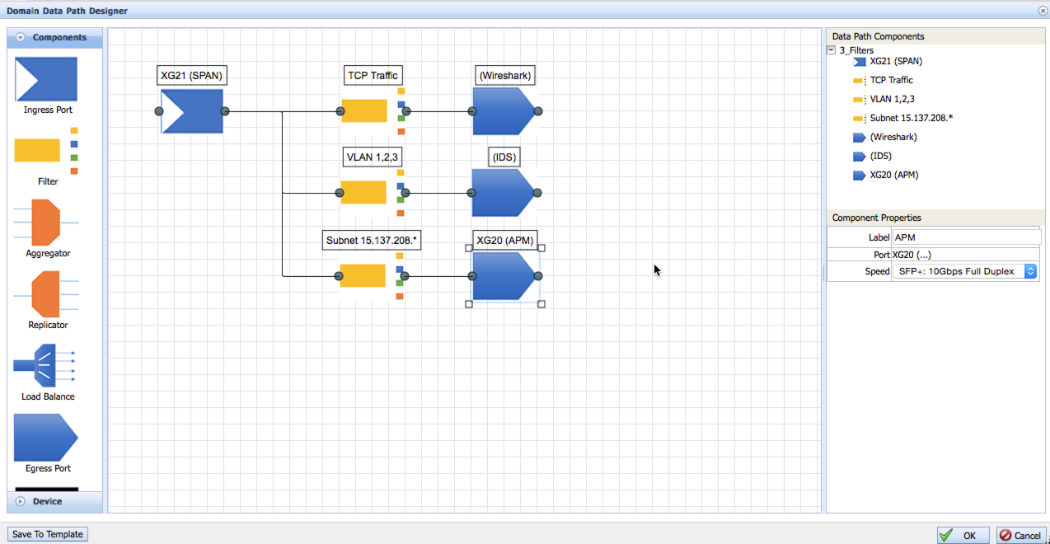

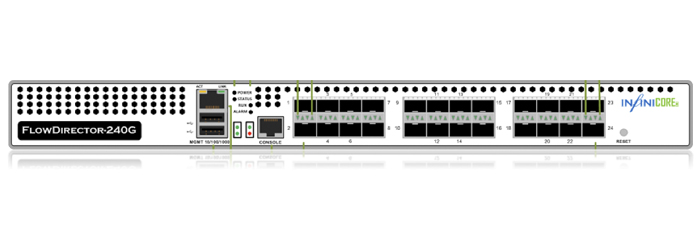

Screenshots and pictures of Infinicore FlowDirector
Synchronisation of the bandwidth configuration with the port speed
PMBus support for the Smart Redundant Power Supply
Visualisation of the power supply status
Support added for SNMP and SNMP-Trap for availability monitoring of the power supplies
CSV im- and export of the filter configuration
Please Log in*
Support of modification of the default VirtualWire modes (bi-directional, uni-directional)
Add IPv6 Filter Support
Virtual Wire with Traffic-Split and Merge functionality
Add domain control, now admin can control the available domains for each user group
Support LDAP based user authentication
Support UI session timeout. Now UI will automatically logout for pre- defined period of time

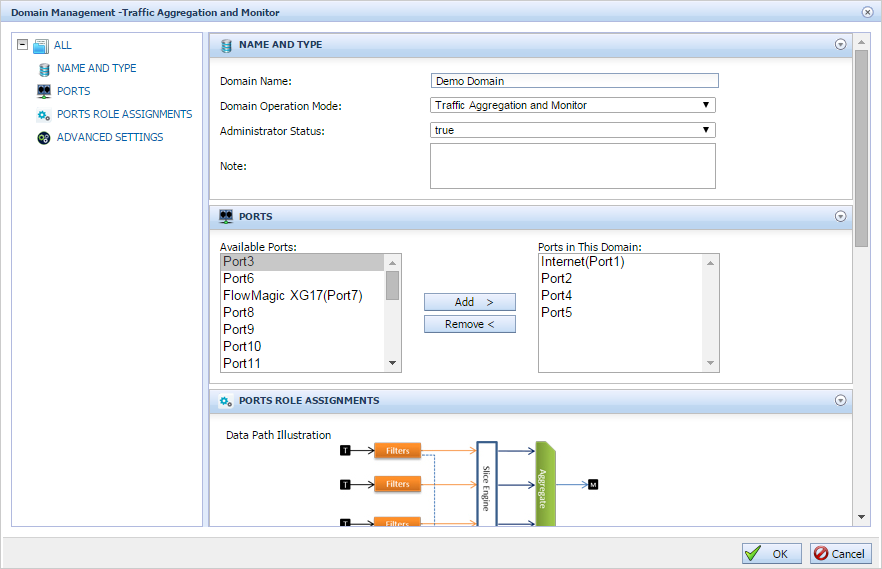

New Domain: Ingress Traffic-Slice and Traffic-Aggregation
Add Port Class to classify ports into Ingress and Egress port
Please Log in*
Learn more about Version 184.108.40.206
Add NTP support
Add HTTPS and related service control; Now user can choose between HTTP and HTTPS
The TxCongest is improved to show three levels of congestions: No Congestion, Close to Congestion and Congestion Dropped
Change the default passing mode of Fan-out ports to be one of the three types: Pass All, Pass Unmatched and Drop
Please Log in*
Hint: "Please Log in" is possible through a simple registration.
FlowDirector datasheet, case studies, presentations and further information
